Rolled Ball Screw
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | TRSTYPE |

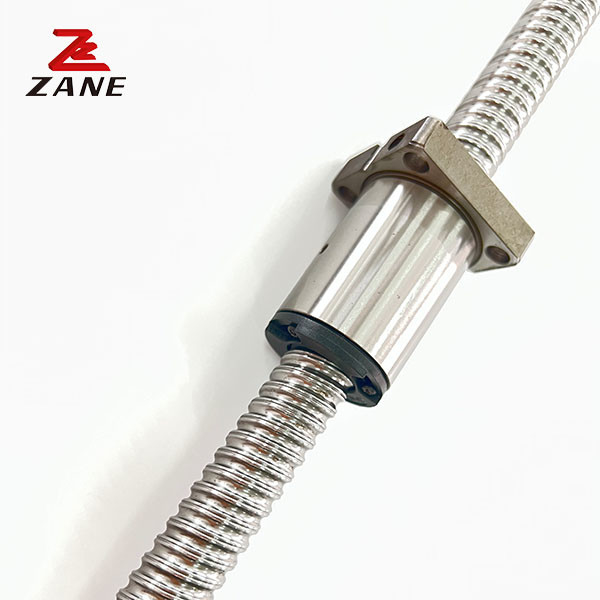

Ground Ball Screw with High Precision for 3D Printer TRSTYPE
A ball screw is a mechanical linear actuator that translates rotational motion to linear motion with little friction. A threaded shaft provides a helical raceway for ball bearings which act as a precision screw. As well as being able to apply or withstand high thrust loads, they can do so with minimum internal friction. They are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. The ball assembly acts as the nut while the threaded shaft is the screw.
| Model | Outer diameter | lead | Steel ball diameter | nut size | Bead laps | Dynamic rated load | Static rated load |
rigid kgf/ µm |
|||||||
| d | I | Da | D(g6) | A | B | L | LI | N | L2 | Q | n | Ca | Coa | k | |
| 0082. 5-B1 | 8 | 2.5 | 1.2 | 17.5 | M15xlP | 7.5 | 23.5 | 10 | 3 | - | - | 2. 5x1 | 189 | 381 | 11 |
| 01002-C1 | 10 | 2 | 1.2 | 19.5 | M17xlP | 7.5 | 22 | 3 | 3.2 | - | - | 3. 5x1 | 277 | 664 | 17 |
| 01004-B1 | 4 | 2 | 25 | M20xlP | 10 | 34 | 3 | 3 | - | - | 2. 5x1 | 400 | 754 | 14 | |
| 01204-C1 | 12 | 4 | 2.5 | 25.5 | M20xlP | 10 | 34 | 13 | 3 | - | - | 3.5x1 | 804 | 1649 | 23 |
| 01205-C1 | 5 | 2.5 | 25.5 | M20xlP | 10 | 39 | 16. 25 | 3 | - | - | 3. 5x1 | 801 | 1644 | 24 | |
| 01404-C1 | 14 | 4 | 2. 381 | 32.1 | M25xl. 5P | 10 | 35 | 13 | 3 | - | 3. 5x1 | 804 | 1803 | 26 | |
| 01604-T3 | 16 | 4 | 2. 381 | 29 | M22xl. 5P | 8 | 32 | 4 | 3.2 | - | - | 1x3 | 759 | 1804 | 24 |
| 01605-T3 | 5 | 3.175 | 32.5 | M26xl. 5P | 12 | 42 | 19. 25 | 3 | - | - | 1x3 | 1077 | 2289 | 25 | |
| 02005-T3 | 20 | 5 | 3.175 | 38 | M35xl. 5P | 15 | 45 | 20.3 | 3 | - | - | 1x3 | 1211 | 2906 | 30 |
| 02505-T3 | 25 | 5 | 3. 175 | 43 | M40xl. 5P | 19 | 69 | 32.11 | 3 | 8 | M6 | 1x4 | 1724 | 4904 | 37 |
