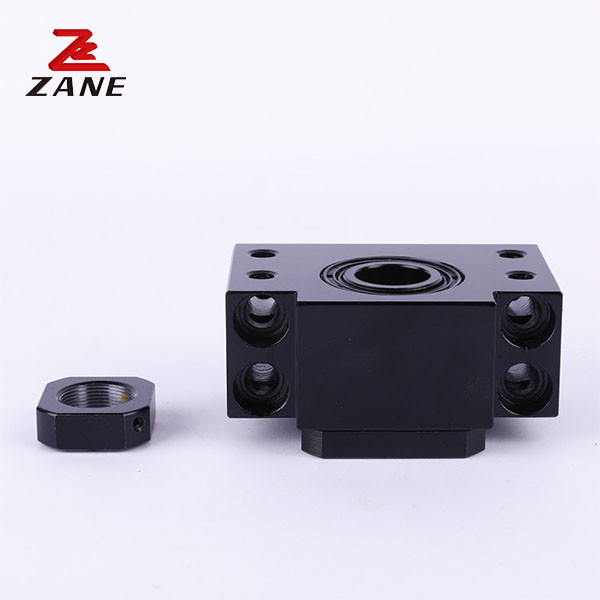

Professional Factory Standard FKFF08 Ball Screw Supported-Side Support Unit
1. Description
According to the purpose of use, ball screw bearing seat can be divided into fixed end (EK series, BK series, LK series, AK series, FK series WBK series, MBK series, SBK series, FBSA series), and support end (EF series, BF series, LF series, AF series. FF series), etc.
Bearing end support Applicable Industries:Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Printing Shops, Construction works , Energy & Mining, Other, Equipment manufacturer
FK Fixed Side
| Type | d1 | L | H | F | E | Dg6 | A | PCD | B | L1 | T1 | X | Y | Z |
| FK5 | 5 | 16.5 | 6 | 10.5 | 18.5 | 20 | 34 | 26 | 26 | 5.5 | 3.5 | 3.4 | 6.5 | 4 |
| FK6 | 6 | 20 | 7 | 13 | 22 | 22 | 36 | 28 | 28 | 5.5 | 3.5 | 3.4 | 6.5 | 4 |
| FK8 | 8 | 23 | 9 | 14 | 26 | 28 | 43 | 35 | 35 | 7 | 4 | 3.4 | 6.5 | 4 |
| FK10 | 10 | 27 | 10 | 17 | 29.5 | 34 | 52 | 42 | 42 | 7.5 | 5 | 4.5 | 8 | 4 |
| FK12 | 12 | 27 | 10 | 17 | 29.5 | 36 | 54 | 44 | 44 | 7.5 | 5 | 4.5 | 8 | 4 |
| FK15 | 15 | 32 | 15 | 17 | 36 | 40 | 63 | 50 | 52 | 10 | 6 | 5.5 | 9.5 | 6 |
| FK20 | 20 | 52 | 22 | 30 | 50 | 57 | 85 | 70 | 68 | 8 | 10 | 6.6 | 11 | 10 |
| FK25 | 25 | 57 | 27 | 30 | 60 | 63 | 98 | 80 | 79 | 13 | 10 | 9 | 15 | 13 |
| FK30 | 30 | 62 | 30 | 32 | 61 | 75 | 117 | 95 | 93 | 11 | 12 | 11 | 17.5 | 15 |
FF Floated Side
| Type | d1 | L | H | F | Dg6 | A | PCD | B | X | Y | Z |
| FF6 | 6 | 10 | 6 | 4 | 22 | 36 | 28 | 28 | 3.4 | 6.5 | 4 |
| FF10 | 8 | 12 | 7 | 5 | 28 | 43 | 35 | 35 | 3.4 | 6.5 | 4 |
| FF12 | 10 | 15 | 7 | 8 | 34 | 52 | 42 | 42 | 4.5 | 8 | 4 |
| FF15 | 15 | 17 | 9 | 8 | 40 | 63 | 50 | 50 | 5.5 | 9.5 | 5.5 |
| FF20 | 20 | 20 | 11 | 9 | 57 | 85 | 70 | 68 | 6.6 | 11 | 6.5 |
| FF25 | 25 | 24 | 14 | 10 | 63 | 98 | 80 | 79 | 9 | 14 | 8.5 |
| FF30 | 30 | 27 | 18 | 9 | 75 | 117 | 95 | 93 | 11 | 17.5 | 11 |
