Nidec Shimpo Gearbox
>
|
| Place of Origin | Japan |
| Brand Name | Nidec |
| Certification | CE,ISO |
| Model Number | VRS |

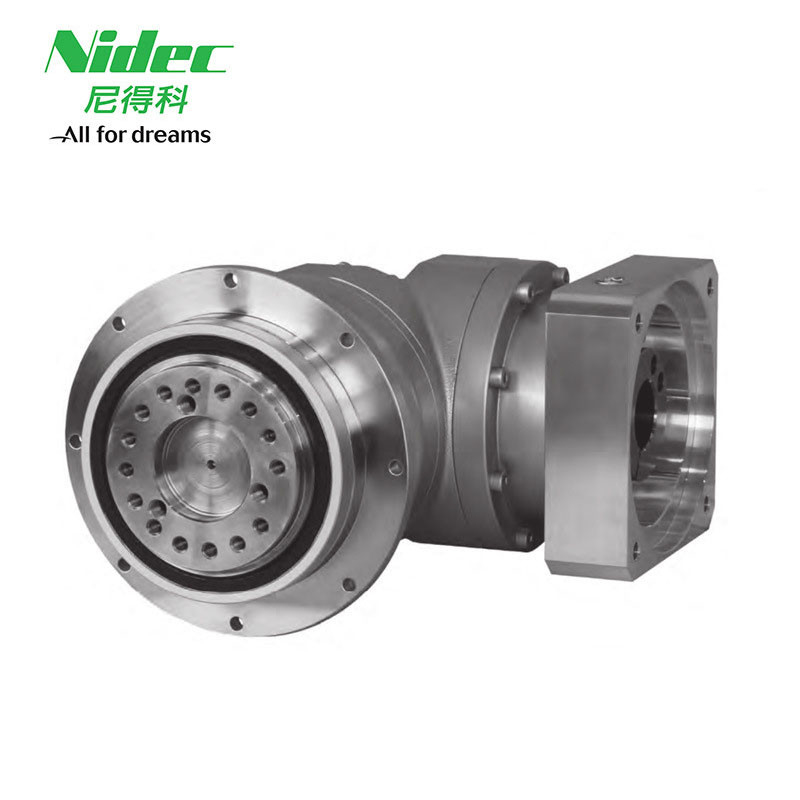

Nidec Shimpo Gearbox provides industrial gearbox solutions with high performance and high quality. The VRS series offers an ideal gearbox for robotic, automation equipment, and CNC machines with a maximum radial load of 3000N. The gearing arrangement is planetary, which is specifically designed for robotic, automation equipment, and CNC machines. The Nidec Shimpo Gearbox is reliable, long-lasting, and can be customized to meet any application requirements. It is an excellent choice for those who need a reliable, high-performance gearbox. With its superior quality and robust construction, the Nidec Shimpo Gearbox is the perfect solution for your industrial gearbox needs.
|
Frame Size |
Stage | Ratio |
Nominal Output torque |
Maximum Output torque |
Emergency stop torque |
Nominal Input speed |
Maximum Input speed |
Permitted Radial load |
Permitted Axial load |
| [Nm] | [Nm] | [Nm] | [rpm] | [rpm] | [N] | [N] | |||
| 100B | 1 Single | 3 | 120 | 225 | 500 | 3000 | 6000 | 3400 | 4800 |
| 4 | 120 | 330 | 625 | 3000 | 6000 | 3700 | 5200 | ||
| 5 | 180 | 330 | 625 | 3000 | 6000 | 4000 | 5600 | ||
| 6 | 180 | 330 | 625 | 3000 | 6000 | 4200 | 5900 | ||
| 7 | 180 | 330 | 625 | 3000 | 6000 | 4400 | 6100 | ||
| 8 | 180 | 330 | 625 | 3000 | 6000 | 4600 | 6300 | ||
| 9 | 120 | 225 | 500 | 3000 | 6000 | 4800 | 6300 | ||
| 10 | 120 | 225 | 500 | 3000 | 6000 | 4900 | 6300 | ||
| 2 Double | 15 | 120 | 225 | 500 | 3000 | 6000 | 5600 | 6300 | |
| 16 | 180 | 330 | 625 | 3000 | 6000 | 5700 | 6300 | ||
| 20 | 180 | 330 | 625 | 3000 | 6000 | 6100 | 6300 | ||
| 25 | 180 | 330 | 625 | 3000 | 6000 | 6500 | 6300 | ||
| 28 | 180 | 330 | 625 | 3000 | 6000 | 6700 | 6300 | ||
| 30 | 120 | 225 | 500 | 3000 | 6000 | 6900 | 6300 | ||
| 35 | 180 | 330 | 625 | 3000 | 6000 | 7000 | 6300 | ||
| 40 | 180 | 330 | 625 | 3000 | 6000 | 7000 | 6300 | ||
| 45 | 120 | 225 | 500 | 3000 | 6000 | 7000 | 6300 | ||
| 50 | 180 | 330 | 625 | 3000 | 6000 | 7000 | 6300 | ||
| 60 | 180 | 330 | 625 | 3000 | 6000 | 7000 | 6300 | ||
| 70 | 180 | 330 | 625 | 3000 | 6000 | 7000 | 6300 | ||
| 80 | 180 | 330 | 625 | 3000 | 6000 | 7000 | 6300 | ||
| 90 | 120 | 225 | 500 | 3000 | 6000 | 7000 | 6300 | ||
| 100 | 120 | 225 | 500 | 3000 | 6000 | 7000 | 6300 |
|
Frame Size |
Stage | Ratio |
Maximum Radial load |
Maximum Axial load |
Weight |
Moment Of inertia ≤14 |
Moment Of inertia ≤19 |
Moment Of inertia≤28 |
Moment Of inertia≤38 |
| [N] | [N] | [kg] | [Kgc㎡] | [Kgc㎡] | [Kgc㎡] | [Kgc㎡] | |||
| 100B |
1 Single |
3 | 7000 | 6300 | 8.1 | - | 3.2 | 5.2 | 13 |
| 4 | 7000 | 6300 | - | 2.0 | 4.0 | 12 | |||
| 5 | 7000 | 6300 | - | 1.5 | 3.6 | 11 | |||
| 6 | 7000 | 6300 | - | 1.3 | 3.3 | 11 | |||
| 7 | 7000 | 6300 | - | 1.1 | 3.1 | 11 | |||
| 8 | 7000 | 6300 | - | 1.0 | 3.0 | 11 | |||
| 9 | 7000 | 6300 | - | 0.96 | 3.0 | 11 | |||
| 10 | 7000 | 6300 | - | 0.93 | 3.0 | 11 | |||
|
2 Double |
15 | 7000 | 6300 | 8.8 | 0.42 | 0.86 | 2.8 | - | |
| 16 | 7000 | 6300 | 0.48 | 0.91 | 2.9 | - | |||
| 20 | 7000 | 6300 | 0.40 | 0.83 | 2.8 | - | |||
| 25 | 7000 | 6300 | 0.38 | 0.82 | 2.8 | - | |||
| 28 | 7000 | 6300 | 0.44 | 0.87 | 2.8 | - | |||
| 30 | 7000 | 6300 | 0.29 | 0.74 | 2.7 | - | |||
| 35 | 7000 | 6300 | 0.37 | 0.81 | 2.7 | - | |||
| 40 | 7000 | 6300 | 0.28 | 0.73 | 2.7 | - | |||
| 45 | 7000 | 6300 | 0.37 | 0.80 | 2.7 | - | |||
| 50 | 7000 | 6300 | 0.28 | 0.73 | 2.7 | - | |||
| 60 | 7000 | 6300 | 0.28 | 0.73 | 2.7 | - | |||
| 70 | 7000 | 6300 | 0.28 | 0.73 | 2.7 | - | |||
| 80 | 7000 | 6300 | 0.28 | 0.73 | 2.7 | - | |||
| 90 | 7000 | 6300 | 0.27 | 0.73 | 2.7 | - | |||
| 100 | 7000 | 6300 | 0.27 | 0.73 | 2.7 | - |
Large precision planetary gear reducer is widely used in: wharf, mining, transportation, lifting, construction, oil, ocean, ship, steel and other fields.
Small (micro) precision planetary reducer is widely used in medical devices, smart home, consumer electronic products, antenna drive, home appliances, automobile drive, robot field, aircraft field, etc.
