Nidec Shimpo Gearbox
>
|
| Place of Origin | Japan |
| Brand Name | Nidec |
| Certification | CE,ISO |
| Model Number | VRB |

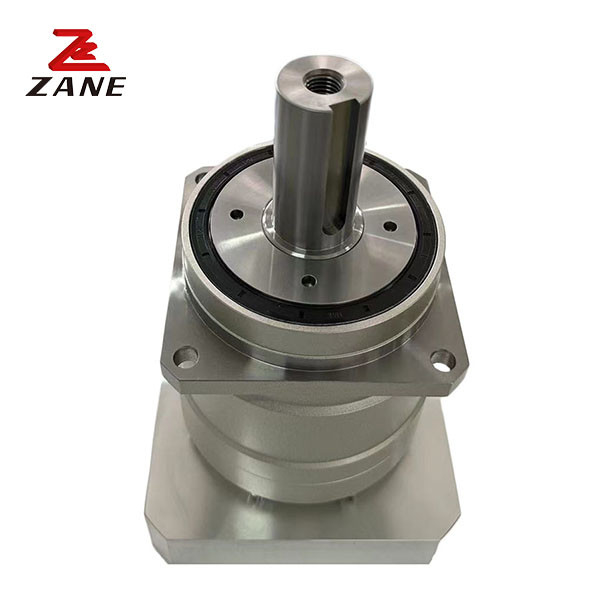

Nidec Shimpo Gearbox: Robust Gearbox Technology for Robotic, Automation Equipment, and CNC Machines
Nidec Shimpo Gearbox is a powerful, reliable, and robust gearbox transmission that provides robust performance for your robotic, automation equipment, and CNC machines. With a frame size of 115 and a planetary gearing arrangement, this gearbox is constructed of iron for maximum strength and durability. It is designed to handle the toughest applications, and its manufacturer, Nidec Shimpo, is committed to providing superior quality gearbox transmissions.
Nidec Shimpo Gearbox is designed to provide a smooth, efficient, and reliable transmission for a variety of applications, including robotic, automation equipment, and CNC machines.
|
Frame size |
Stage | Ratio | Nominal output torque | Maximum output torque | Emergency stop torque | Nominal input speed | Maximum input speed | Permitted radial load | Permitted axial load |
| [Nm] | [Nm] | [Nm] | [rpm] | [rpm] | [N] | [N] | |||
|
115 |
1 Single |
3 | 120 | 225 | 500 | 3000 | 6000 | 1300 | 1500 |
| 4 | 120 | 330 | 625 | 3000 | 6000 | 1500 | 1700 | ||
| 5 | 180 | 330 | 625 | 3000 | 6000 | 1600 | 1900 | ||
| 6 | 180 | 330 | 625 | 3000 | 6000 | 1700 | 2000 | ||
| 7 | 180 | 330 | 625 | 3000 | 6000 | 1800 | 2100 | ||
| 8 | 180 | 330 | 625 | 3000 | 6000 | 1900 | 2300 | ||
| 9 | 120 | 225 | 500 | 3000 | 6000 | 1900 | 2400 | ||
| 10 | 120 | 225 | 500 | 3000 | 6000 | 2000 | 2500 | ||
| Double | 15 | 120 | 225 | 500 | 3000 | 6000 | 2300 | 3000 | |
| 16 | 180 | 330 | 625 | 3000 | 6000 | 2300 | 3100 | ||
| 20 | 180 | 330 | 625 | 3000 | 6000 | 2500 | 3400 | ||
| 25 | 180 | 330 | 625 | 3000 | 6000 | 2700 | 3700 | ||
| 28 | 180 | 330 | 625 | 3000 | 6000 | 2800 | 3900 | ||
| 30 | 120 | 225 | 500 | 3000 | 6000 | 2900 | 3900 | ||
| 35 | 180 | 330 | 625 | 3000 | 6000 | 3000 | 3900 | ||
| 40 | 180 | 330 | 625 | 3000 | 6000 | 3200 | 3900 | ||
| 45 | 120 | 225 | 500 | 3000 | 6000 | 3300 | 3900 | ||
| 50 | 180 | 330 | 625 | 3000 | 6000 | 3400 | 3900 | ||
| 60 | 180 | 330 | 625 | 3000 | 6000 | 3600 | 3900 | ||
| 70 | 180 | 330 | 625 | 3000 | 6000 | 3800 | 3900 | ||
| 80 | 180 | 330 | 625 | 3000 | 6000 | 4000 | 3900 | ||
| 90 | 120 | 225 | 500 | 3000 | 6000 | 4200 | 3900 | ||
| 100 | 120 | 225 | 500 | 3000 | 6000 | 4300 | 3900 |
|
size |
Stage |
Ratio |
Maximum radial load |
Maximum axial load |
Weight |
Moment of inertia (≦φ14) |
Moment of inertia (≦φ19) |
Moment of inertia (≦φ28) |
Moment of inertia (≦φ38) |
| [N] | [N] | [kg] | [kgcm2] | [kgcm2] | [kgcm2] | [kgcm2] | |||
|
115 |
1 Single |
3 | 4300 | 3900 | 8 | - | 3.3 | 5.3 | 13 |
| 4 | 4300 | 3900 | - | 2.0 | 4.1 | 12 | |||
| 5 | 4300 | 3900 | - | 1.6 | 3.6 | 11 | |||
| 6 | 4300 | 3900 | - | 1.3 | 3.3 | 11 | |||
| 7 | 4300 | 3900 | - | 1.1 | 3.2 | 11 | |||
| 8 | 4300 | 3900 | - | 1.0 | 3.1 | 11 | |||
| 9 | 4300 | 3900 | - | 0.98 | 3.0 | 11 | |||
| 10 | 4300 | 3900 | - | 0.95 | 3.0 | 11 | |||
|
Double |
15 | 4300 | 3900 | 8.9 | 0.43 | 0.86 | 2.8 | - | |
| 16 | 4300 | 3900 | 0.48 | 0.92 | 2.9 | - | |||
| 20 | 4300 | 3900 | 0.40 | 0.83 | 2.8 | - | |||
| 25 | 4300 | 3900 | 0.38 | 0.82 | 2.8 | - | |||
| 28 | 4300 | 3900 | 0.44 | 0.88 | 2.8 | - | |||
| 30 | 4300 | 3900 | 0.29 | 0.74 | 2.7 | - | |||
| 35 | 4300 | 3900 | 0.37 | 0.81 | 2.7 | - | |||
| 40 | 4300 | 3900 | 0.28 | 0.73 | 2.7 | - | |||
| 45 | 4300 | 3900 | 0.37 | 0.80 | 2.7 | - | |||
| 50 | 4300 | 3900 | 0.28 | 0.73 | 2.7 | - | |||
| 60 | 4300 | 3900 | 0.28 | 0.73 | 2.7 | - | |||
| 70 | 4300 | 3900 | 0.28 | 0.73 | 2.7 | - | |||
| 80 | 4300 | 3900 | 0.28 | 0.73 | 2.7 | - | |||
| 90 | 4300 | 3900 | 0.27 | 0.73 | 2.7 | - | |||
| 100 | 4300 | 3900 | 0.27 | 0.73 | 2.7 | - |
High torque output: The Nidec Shimpo gearbox is designed to provide high torque at low speeds, making it ideal for applications that require heavy lifting or moving large loads.
Efficiency: The gearbox is highly efficient, which means that it can help reduce energy consumption and operating costs.
Compact size: Despite its high torque output, the gearbox is relatively small and lightweight, which makes it easy to install and integrate into existing systems.
Customizable: The Nidec Shimpo gearbox is highly customizable, with a range of mounting options and gear ratios available to suit different applications.
Durable: The gearbox is made from high-quality materials and is designed to be highly durable and long-lasting. It is also designed to be easy to maintain, with a simple and straightforward design that allows for easy access to components for cleaning and replacement.
