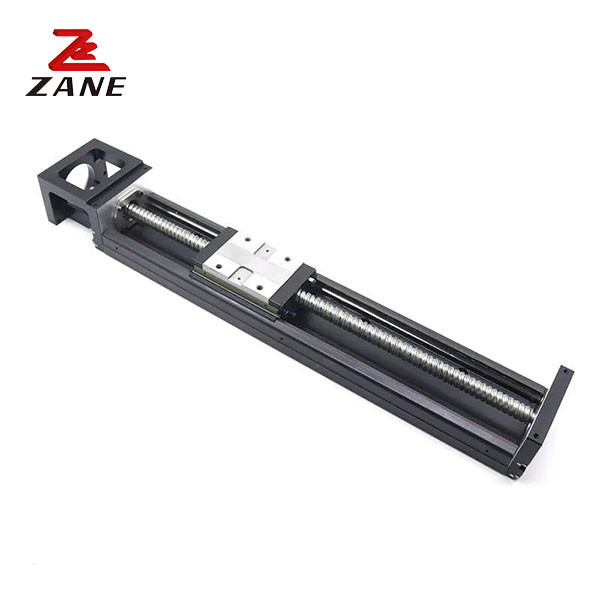

HIWIN Replacement Single Axis Robot KK Linear Module KK40 KK50 KK60 KK86 KK100 KK130
Product Paramenters
The Linear Module KK Series Parameter list
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | n | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | ||||
| 100 | 159 | 36 | - | 20 | 2 | 0.48 | - |
| 150 | 209 | 86 | 34 | 15 | 3 | 0.6 | 0.67 |
| 200 | 259 | 136 | 84 | 40 | 3 | 0.72 | 0.79 |
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | K(mm) | n | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | |||||
| 150 | 220 | 70 | - | 35 | 80 | 2 | 1 | - |
| 200 | 270 | 120 | 55 | 20 | 160 | 3 | 1.2 | 1.4 |
| 250 | 320 | 170 | 105 | 45 | 160 | 3 | 1.4 | 1.6 |
| 300 | 370 | 220 | 155 | 30 | 240 | 4 | 1.6 | 1.8 |
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | K(mm) | n | m | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | ||||||
| 150 | 220 | 60 | - | 25 | 100 | 2 | 2 | 1.4 | - |
| 200 | 270 | 110 | - | 50 | 100 | 2 | 2 | 1.7 | - |
| 300 | 370 | 210 | 135 | 50 | 200 | 3 | 2 | 2.3 | 2.6 |
| 400 | 470 | 310 | 235 | 50 | 100 | 4 | 4 | 3.2 | 3.2 |
| 500 | 570 | 410 | 335 | 50 | 200 | 5 | 3 | 3.5 | 3.8 |
| 600 | 670 | 510 | 435 | 50 | 100 | 6 | 6 | 4.1 | 4.5 |
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | H(mm) | n | m | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | |||||
| 340 | 440 | 210 | 100 | 70 | 3 | 2 | 5.7 | 6.5 |
| 440 | 540 | 310 | 200 | 20 | 5 | 3 | 6.9 | 7.7 |
| 540 | 640 | 410 | 300 | 70 | 5 | 3 | 8.0 | 8.8 |
| 640 | 740 | 510 | 400 | 20 | 7 | 4 | 9.2 | 10.0 |
| 740 | 840 | 610 | 500 | 70 | 7 | 4 | 10.4 | 11.2 |
| 940 | 1040 | 810 | 700 | 70 | 9 | 5 | 11.6 | 12.4 |
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | H(mm) | n | m | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | ||||||
| 980 | 1089 | 828 | 700 | 40 | 90 | 7 | 5 | 18.6 | 20.3 |
| 1080 | 1189 | 928 | 800 | 15 | 40 | 8 | 6 | 20.3 | 22.0 |
| 1180 | 1289 | 1028 | 900 | 65 | 90 | 8 | 6 | 22.0 | 23.7 |
| 1280 | 1389 | 1128 | 1000 | 40 | 40 | 9 | 7 | 23.6 | 25.3 |
| 1380 | 1489 | 1228 | 1100 | 15 | 90 | 10 | 7 | 25.3 | 27.0 |
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | H(mm) | n | m | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | ||||||
| 980 | 1098 | 811 | 659 | 40 | 90 | 7 | 5 | 29.4 | 32.3 |
| 1180 | 1298 | 1011 | 859 | 65 | 90 | 8 | 6 | 34.3 | 37.2 |
| 1380 | 1498 | 1211 | 1059 | 90 | 90 | 9 | 7 | 39.2 | 42.1 |
| 1680 | 1798 | 1511 | 1359 | 90 | 40 | 11 | 9 | 46.5 | 49.4 |
