KK Module
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | KK40 |

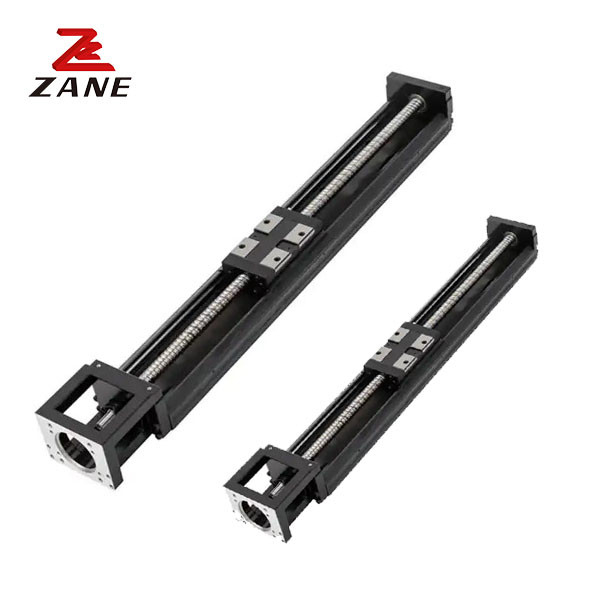

HIWIN Replacement High Accuracy Linear Actuator KK Series CNC Linear Motion Module
KK Module
KK industrial robot through the modular design, the integration of ball screw and linear slide rail, can save the traditional actuating platform need to go through the selection of guidance and drive components, installation and verification, large volume, space and other shortcomings. Therefore, KK industrial robots can provide fast selection, installation, compact volume, high rigidity and other characteristics, which can greatly reduce the space and time of client use.
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | n | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | ||||
| 100 | 159 | 36 | - | 20 | 2 | 0.48 | - |
| 150 | 209 | 86 | 34 | 15 | 3 | 0.6 | 0.67 |
| 200 | 259 | 136 | 84 | 40 | 3 | 0.72 | 0.79 |
Type composition
Our Company
Jiangsu ZANE Machinery Technology Co., Ltd
Jiangsu ZANE Machinery Technology Co., Ltd. is a high-tech enterprise of high-tech mechanical transmission products. The company has four branches to manage different types of mechanical transmission products research and marketing projects. It has nearly 80 independent intellectual property rights. It is the first-level agent of Taiwan YYC rack, the first-level agent of Japan Nideke transmission, and the pioneer of Taiwan Heqing (HAWKKING) linear guide rail and ball screw. ZANE modules are deeply loved and trusted by our customers. "Knowing kindness and being grateful to enrich one's life" is the eternal source of growth for ZANE people.
