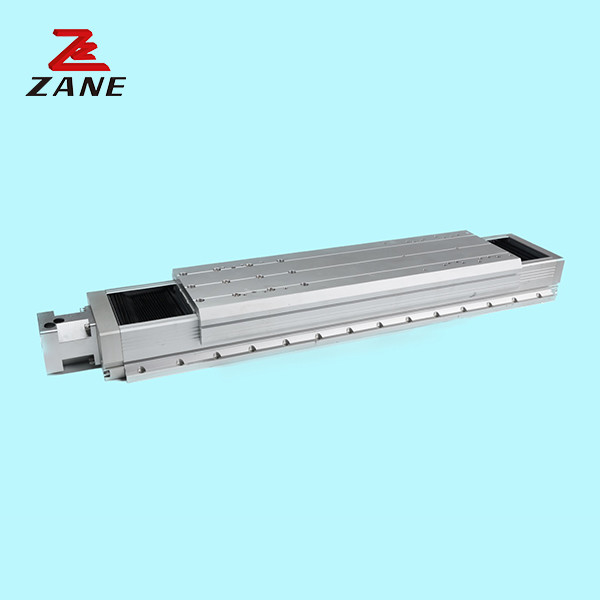

F190 100mm Effective Travel Length Double Optical Axis Guide For Automatic Equipment
【High Precision】- With high precision, the guide rails come directly into contact with the mounting base, maximizing the benefits of linear guide rails and reducing cumulative errors
[Uses] - Suitable for automation equipment, providing a single axis robot with linear movement
【Glossary】- In order to complete more complex tasks, it is very practical
【General Purpose】-Multiple functions such as parts assembly, inkjet operation, flexible picking, parts handling, loading and unloading parts inspection system
Technical parameter:
| Driver power(W) | 750W | |||
| Ball screw (16) mm lead | P05:5 | P10:10 | P20:20 | |
| Maximum speed(mm/s): | 250 | 500 | 1000 | |
| Maximum handling weight(kg) | Level | 120kg | 100kg | 50kg |
| Perpendicularity | 60kg | 50kg | 40kg | |
| Repeated positioning accuracy (mm): | Class C +0.02mm; P level +0.01mm | |||
| Range of Stroke(mm): | The range is 100 to 500mm | |||
| Load moment(N.m ) | Mx:110; My:150; Mz:120 | |||
| Load mechanism | GEH15 Dual track | |||
| Driving mechanism | Grade C. 16 to grade C7; Grade P ·16 Grinding grade C5 | |||
| Base material | Hard extruded aluminum profile, luster itself | |||
| Installation surface accuracy requirements | Less than 0.05mm | |||
| Dust proof design | Full seal dust proof | |||
| Stroke(S) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| L1 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 |
| L2 | 295 | 350 | 415 | 470 | 525 | 580 | 635 | 690 | 745 |
| L3 | 330 | 390 | 480 | 520 | 580 | 640 | 700 | 760 | 820 |
| L | 438 | 498 | 568 | 628 | 688 | 748 | 808 | 868 | 928 |
