Linear Guide Module
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | ZCH110 |

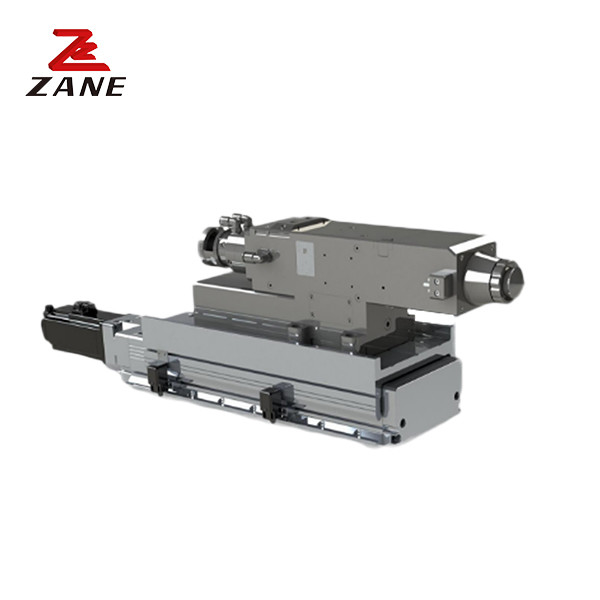

Drive Ball Screw Linear Guide Slide Module ZCH110 Screw Outer Diameter 16
1. Description
The linear modules in the ZCH series were specially developed for the automation industry. A wide selection of ball screws, linear motors and belt drives ensures high levels of speed and positioning accuracy. The cover is available in aluminium, polyurethane, stainless steel or steel.
2. Specification
| Product Name | Fully enclosed sliding table module | |||
| Material | Aluminum Alloy | |||
| Motor power | 400W | |||
| Repeated positioning accuracy | Class C ±0.02MM and Class P ±0.01MM | |||
| Outside diameter of lead screw(a) | 16 | |||
| Lead of the lead screw(MM) | 5 | 10 | 20 | |
| Maximum speed(MM/SEC) | 250 | 500 | 1000 | |
| Maximum load(KG) | level | 50 | 43 | 20 |
| vertical | 18 | 15 | 10 | |
| Rated thrust(N) | 1470 | 735 | 365 | |
| Stroke(MM) | 100-1000(50interval) | |||
| Rated motor speed(RPM) | 3000 | |||
| application |
Precise positioning, dispensing, spray painting, visual inspection, moving,grabbing, cutting and welding, automatic assembly, automatic locking screws,palletizing,PCB board cutting,circuit board surface cleaning, Disc Receiving Device, IC board Pick |
|||
Horizontal installation Unit:MM Wall mounting Unit:MM Vertical mounting Unit:MM
|
|
|
Double slide seat Double slide seat Slide seat extension Slide seat reverse simultaneous motion
