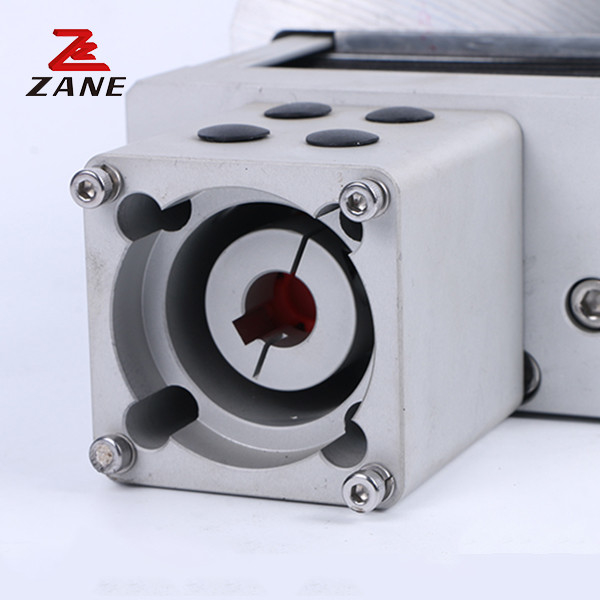

Ball Screw Stepper Motor Cnc Linear Actuator Linear Motion Guide
  • Ball Screw Stepper Motor Cnc Linear Actuator Linear Motion Guide
Ball Screw Stepper Motor Cnc Linear Actuator Linear Motion Guide

Ball Screw Stepper Motor Cnc Linear Actuator Linear Motion Guide

Place of Origin China
Brand Name ZANE
Certification CE，ISO
Model Number ZHB175
Product Details
Product Name:
Linear Slide Module
Model Number:
ZHB175
Material:
Bearing Steel
Weight (KG):
5.8
Motor Power:
750w
Horizontal Load:
75KG
Effective Stroke:
100-5500
Core Components:
Guide
Applicable Industries:
Building Material Shops, Manufacturing Plant
Highlight:

Cnc Linear Actuator

,

Stepper Motor Cnc Linear Actuator

,

750W Linear Motion Guide

Product Description

Ball Screw Stepper Motor Cnc Linear Actuator Linear Motion Guide



Product name Linear slide module
Model ZHB175
Effective stroke 100-5500
Screw specifications 2005/2010/2020
20 mean:Screw diameter 20mm
05 mean:Motor rotates 5mm(10mm)
Default 2005 specification, If need others please leave a message for
the screw specifications



Product Display

Ball Screw Stepper Motor Cnc Linear Actuator Linear Motion Guide 0

Motor power 750W
Momentum per transfer(MM) 90
Repeated positioning accuracy Class C ±0.04MM
Maximum load(KG) 75
Maximum speed(MM/SEC) 4500
Stroke(MM) 100-5500(50interval)
Maximum load 5M
Rated motor speed(RPM) 3000



Exhibition&Factory



Ball Screw Stepper Motor Cnc Linear Actuator Linear Motion Guide 1          Ball Screw Stepper Motor Cnc Linear Actuator Linear Motion Guide 2





Product packaging



                                      Choose Goods                                                                                              Bundle

            According to your order,select the corresponding                                                     Classified and packaged according to

                  quantity of goods to prepare packaging.                                                              attributes such as model and quantity.

 Ball Screw Stepper Motor Cnc Linear Actuator Linear Motion Guide 3          Ball Screw Stepper Motor Cnc Linear Actuator Linear Motion Guide 4
