Linear Guide Module
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE,ISO |
| Model Number | F136P |

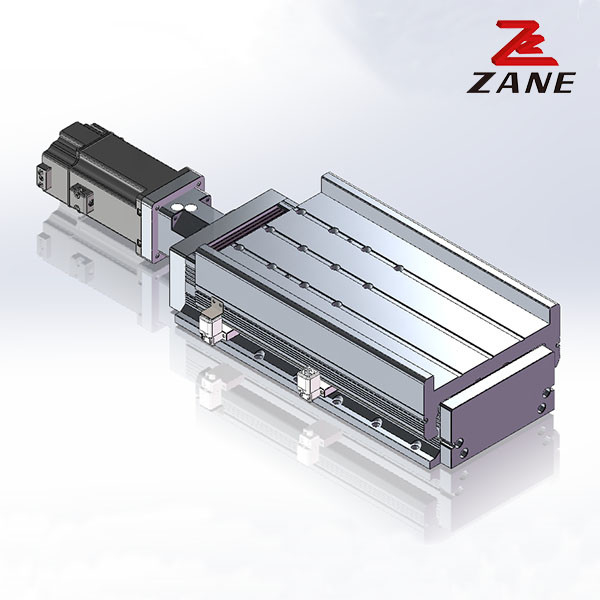

The single axis robot mainly integrates ball screw and linear guide rail through modular design. Therefore, it can provide the characteristics of high precision, rapid installation, selection, high rigidity, small volume and space saving. The high-precision ball screw is used as the transmission mechanism and the U-shaped track with optimal design is used as the guide mechanism to ensure the requirements of precision and rigidity.
| Driver power(W) | 400W | |||
| Ball screw (16) mm lead | P05:5 | P10:10 | P20:20 | |
| Maximum speed(mm/s): | 250 | 500 | 1000 | |
| Maximum handling weight(kg) | Level | 60kg | 50kg | 40kg |
| Perpendicularity | 40kg | 35kg | 30kg | |
| Repeated positioning accuracy (mm): | Class C +0.02mm; P level +0.01mm | |||
| Range of travel(mm): | The range is 50 to 1500mm | |||
| Load moment(N.m ) | Mx:50; My:70; Mz:70 | |||
| Load mechanism | GEH15 Dual track | |||
| Driving mechanism | Grade C. 16 to grade C7; Grade P ·16 Grinding grade C5 | |||
| Base material | Hard extruded aluminum profile, luster itself | |||
| Installation surface accuracy requirements | Less than 0.05mm | |||
| Dust proof design | Full seal dust proof | |||
| Stroke(S) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| L1 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 |
| L2 | 295 | 350 | 415 | 470 | 525 | 580 | 635 | 690 |
| L3 | 330 | 390 | 480 | 520 | 580 | 640 | 700 | 760 |
| L | 438 | 498 | 568 | 628 | 688 | 748 | 808 | 868 |
Various specifications and models are available to meet different usage requirements. If you need customization, please contact us. We can provide 3D drawings and customized accessories to reduce your time cost.
The shipping cost varies depending on the length and quantity you require. Please contact us for shipping calculation before placing an order.
