GHW30 Linear Rails Block Linear Guide Bearing For Linear Actuator

Name: GHW30 Linear Rails Block Linear Guide Bearing For Linear Actuator
Brand: ZANE
SKU: ZANE-ghw
Rating: 4.9 (169 reviews)

Place of Origin	China
Brand Name	ZANE
Certification	CE，ISO
Model Number	ZANE-ghw

Product Details

Product Name:

Heavy Duty Linear Guide Rail

Length:

100-6000mm(Customized)

Performance::

Interchanged Easily

Keyword:

Linear Guide Rail Ball Bearing

Model:

HGW30

Block Type:

With Flange/ Without Flange

Linear Guide Type:

W Type Or H Type Or R Type

Feature:

High Rigidity , High Accuracy

High Light:

HGW30 Linear Motion Guide

6000mm Linear Motion Guide

square linear rail with block

Product Description

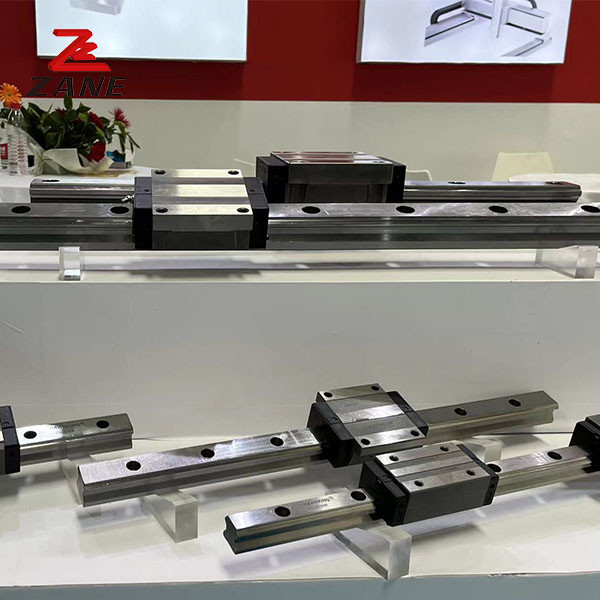

Square linear rail guide with block HGW30 100-6000mm Customized

Package&Delivery of Linear Guide and Block:

We will make professional packing with carton box and wooden box, to protect the goods from damage, and We will choose the appropriate mode of transportation to deliver the goods to you, we can also make the package and the delivery according to your demands.

Model	Combination size (mm)			Block size(mm)													Slide rail size(mm)							Fixing bolts for slide rails size	Basic dynamic fixed load	Basic fixed fixed load	Allowable static moment					weight
																											Mr kN-m	Mp kN-m			My kN-m	block kg		slide kg/m
	H	Hi	N	W	B	Bi	c	U	L	Kl	G	M (A/B)	T	Ti	h2	h3	Wr	Hr	D	h	d	P	E	(mm)	C(kN)	C0(kN)
GHW15CA	24	4.3	16	47	38	4.5	30	39.4	61.4	8	5.3	M5/ φ4.5	6	8.9	3.95	3.7	15	15	7.5	5.3	4.5	60	20	M4xl6	11. 38	25.31	0.17		0.15	0.15		0.17	1.45
GHW20CA	30	4.6	21.5	63	53	5	40	50.5	77.5	10.25	12	M6/φ6	8	10	6	7	20	17.5	9.5	8.5	6	60	20	M5xl6	17.75	37.84	0.38		0.27	0.27		0.40	2.21
GHW20HA								65.2	92.2	17.6															21.18	48.84	0.48		0.47	0.47		0.52
GHW25CA	36	5.5	23.5	70	57	6.5	45	58	84	11.8	12	M8/φ77	8	14	6	9	23	22	11	9	7	60	20	M6x20	26.48	56.19	0.64		0.51	0.51		0.59	3.21
GHW25HA								78.6	104.6	22.1															32.75	76.00	0.87		0.88	0.88		0.80
GHW30CA	42	6	31	90	72	9	52	70	97.4	14.25	12	M10/φ9	8.5	16	6.5	10.8	28	26	14	12	9	80	20	M8x25	38.74	83.06	1.06		0.85	0.85		1.09	4.47
GHW30HA								93	120.4	25.75															47.27	110.13	1.40		1.47	1.47		1.44
GHW35CA	48	7.5	33	100	82	9	62	80	112.4	14.6	12	M10/φ9	10.1	18	9	12.6	34	29	14	12	9	80	20	M8x25	49.52	102.87	1.73		1.20	1.20		1.56	6.30
GHW35HA								105.8	138.2	27.5															60.21	136.31	2.29		2.08	2.08		2.06
GW45CA	60	9.5	37.5	120	100	10	80	97	139.4	13	12.9	M12/φ11	15.1	22	8.5	20.5	45	38	20	17	14	105	22.5	M12x35	77.57	155.93	3.01		2.35	2.35		2.79	10.41
GHW45HA								128.8	171.2	28.9															94.54	207.12	4.00		4.07	4.07		369
GHW55CA	70	13	43.5	140	116	12	95	117.7	166.7	17.35	12.9	M14/φ14	17.5	26.5	12	19	53	44	23	20	16	120	30	M14x45	114.44	227.81	5.66		4.06	4.06		4.52	15.08
GHW55HA								155.8	204.8	36.4															139.35	301.26	7.49		7.01	7.01		5.96
GHW65CA	90	15	53.5	170	142	14	110	144.2	200.2	23.1	12.9	M16/φ16	25	37.5	15	15	63	53	26	22	18	150	35	M16x50	163.63	324.71	10.02		6.44	6.44		9.17	21.18
GHW65HA								203.6	259.6	52.8															208.36	457.15	14.15		11.12	11.12		12.89
