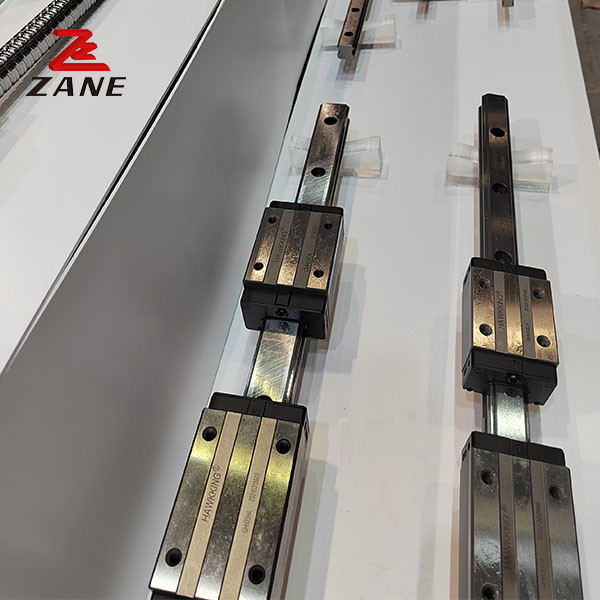

GEH30SA Linear Guide Block 15mm Interval Linear Motion Carriages Electric Machine

Name: GEH30SA Linear Guide Block 15mm Interval Linear Motion Carriages Electric Machine
Brand: ZANE
SKU: ZANE-GEH
Rating: 5 (103 reviews)

Place of Origin	China
Brand Name	ZANE
Certification	CE，ISO
Model Number	ZANE-GEH

Product Details

Product Name:

Linear Rail Guide

Length:

Customers' Requirement

Linear Guide Application:

CNC Machine, Electric Machine, Lathes, Medical Equipment

Length Of Slide Rail:

40-250mm/15mm Interval

Type:

Linear Motion Guideway

MODEL:

GEH30SA GEH30CA

Application:

CNC Machine, Automatic System

High Light:

GEH30SA linear guide block

GEH30CA linear guide block

15mm Interval linear motion carriages

Product Description

GEH35SA GEH35CA Linear Guide Linear Slide Rail linear motion

linear guide block GEH30SA GEH30CA linear bearing carriage linear motion

Application of Linear guide rail

XY-table
Lathe machine
Marble cutting machines
Heavy cutting machines
Machine centers,Machine tools
Precision machining machines
Heavy cutting machines,Punching machines,
Automatic equipments,Grinding machines
High speed transfer equipments
Injection molding machines
Measuring equipments.

Model	Combination size (mm)			Block size(mm)													Slide rail size(mm)							Fixing bolts for slide rails size	Basic dynamic fixed load	Basic fixed fixed load	Allowable static moment				weight
																											Mr kN-m	Mp kN-m		My kN-m	block kg		slide Kg/m
	H	Hi	N	W	B	Bi	C	Li	L	Ki	Ki	G	Mxl	T	H2	h3	w/	Hr	D	h	d	P	E	(mm )	C(kN)	Co(kN)
GEH15SA	24	4.5	9.5	34	26	4	-	23.1	40.1	14.8	3.5	5.7	M4x6	6	5.5	6	15	12.5	6	4.5	3.5	60	20	M3xl6	5.35	9.40	0.08		0.04	0.04	0.09	1.25
GEH15CA							26	39.8	56.8	10.15															7.83	16.19	0.13		0.10	0.10	0.15
GEH20SA	28	6	11	42	32	5	-	29	50	18.75	4.15	12	M5x7	7.5	6	6	20	15.5	9.5	8.5	6	60	20	M5xl6	7.23	12.74	0.13		0.06	0.06	0.15	2.08
GEH20CA							32	48.1	69.1	12.3															10.31	21.13	0.22		0.16	0.16	0.24
GEH25SA	33	7	12.5	48	35	6.5	-	35.5	59.1	21.9	4.55	12	M6x9	8	8	8	23	18	11	9	7	60	20	M6x20	11.40	19.50	0.23		0.12	0.12	0.25	2.67
GEH25CA							35	59	82.6	16.15															16.27	32.40	0.38		0.32	0.32	0.41
GEH30SA	42	10	16	60	40	10	-	41.5	69.5	26.75	6	12	M3xl2	9	8	9	28	23	11	9	7	80	20	M6x25	16.42	28.10	0.40		0.21	0.21	0.45	4.35
GEH30CA							40	70.1	98.1	21.05															23.70	47.46	0.68		0.55	0.55	0.76
GEH35SA	48	11	18	70	50	10	-	45	75	28.5	7	12	M8xl2	10	8.5	8.5	34	27.5	14	12	9	80	20	M8x25	16.42	28.10	0.40		0.21	0.21	0.45	6.14
GEH35CA							50	78	108	20															33.35	64.84	0.98		0.69	0.69	1.13
