| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | ZANE-GEW |

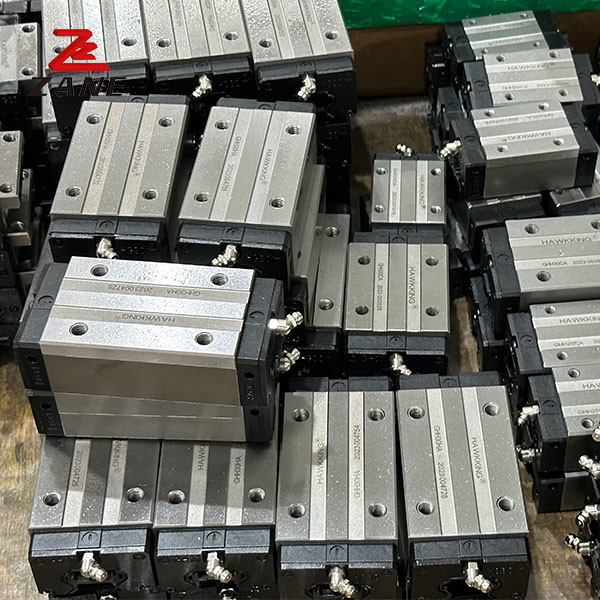

GEW35CA CNC machine linear motion guide rail with Flange block
Interchangeability
For the tightly control of production precision, all the size can be maintained at as table tolerance range. So the interchange type linear guide can keep the same smoothness, preloading and precision when block arbitrarily assemble on the same type of rail. It is very easy to assemble and repair.
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) |
Fixing bolts for slide rails |
Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | ||||||||||||||||||||||||
| Mr kN-m |
Mp |
My kN-m |
block |
slide |
||||||||||||||||||||||||||||
| H | Hi | N | W | B | Bi | C | L1 | L | Ki | K2 | G | M | T | Ti | h2 | h3 | Wr | Hr | D | h | d | P | E | (nnn) | C(kN) | Co(kN) | ||||||
| GEW15SA | 24 | 4.5 | 18.5 | 52 | 41 | 5.5 | - | 23.1 | 40.1 | 14.8 | 3.5 | 5.7 | M5/φ4.5 | 5 | 7 | 5.5 | 6 | 15 | 12.5 | 6 | 4.5 | 3.5 | 60 | 20 | M3xl6 | 5.35 | 9.40 | 0.08 | 0.04 | 0.04 | 0.12 | 1.25 |
| GEW15CA | 26 | 39.8 | 56.8 | 10.15 | 7.83 | 16.19 | 0.13 | 0.10 | 0.10 | 0.21 | ||||||||||||||||||||||
| GEW20SA | 28 | 6 | 19.5 | 59 | 49 | 5 | - | 29 | 50 | 18.75 | 415 | 12 | M6/φ5.5 | 7 | 9 | 6 | 6 | 20 | 15.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 7.23 | 12.74 | 0.13 | 0.06 | 0.06 | 0.19 | 2.08 |
| GEW20CA | 32 | 48.1 | 69.1 | 12.3 | 10.31 | 21.13 | 0.22 | 0.16 | 0.16 | 0.32 | ||||||||||||||||||||||
|
GEW25SA |
33 | 7 | 25 | 73 | 60 | 6.5 | 一 | 35.5 | 59.1 | 21.9 | 4.55 | 12 | M8/φ7 | g | 10 | 8 | 8 | 23 | 18 | 11 | 9 | 7 | 60 | 20 | M6x20 | 11.40 | 19.50 | 0.23 | 0.12 | 0.12 | 0.35 | 2.67 |
| 35 | 59 | 82.6 | 16.15 | 16.27 | 32.40 | 0.38 | 0.32 | 0.32 | 0.59 | |||||||||||||||||||||||
| GEW30SA | 42 | 10 | 31 | 90 | 72 | 9 | - | 41.5 | 69.5 | 26.75 | 6 | 12 | M10/φ9 | 7 | 10 | 8 | 9 | 28 | 23 | 11 | 9 | 7 | 80 | 20 | M6x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.62 | 4.35 |
| GEW30CA | 40 | 70.1 | 98.1 | 21.05 | 23.70 | 47.46 | 0.68 | 0.55 | 0.55 | 1.04 | ||||||||||||||||||||||
| GEW35SA | 48 | 11 | 33 | 100 | 82 | 9 | - | 45 | 75 | 28.5 | 7 | 7 | M10/φ9 | 10 | 13 | &5 | &5 | 34 | 27.5 | 14 | 12 | 9 | 80 | 20 | M6x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.62 | 4.35 |
| GEW35CA | 50 | 78 | 108 | 20 | 23.70 | 47.46 | 0.68 | 0.55 | 0.55 | 1.04 | ||||||||||||||||||||||
