Semi Enclosed Linear Sliding Table Module ZHH175 High Precision Ball Screw Dust Proof

Name: Semi Enclosed Linear Sliding Table Module ZHH175 High Precision Ball Screw Dust Proof
Brand: ZANE
SKU: ZHH175
Rating: 4.8 (185 reviews)

Place of Origin	China
Brand Name	ZANE
Certification	CE，ISO
Model Number	ZHH175

Product Details

Product Name:

Linear Sliding Table Module

Material:

Stainless Steel

Screw Type:

Screw

Motor Power:

750W

Outside Diameter Of Lead Screw:

20,25

Stroke:

100-1500 MM

Rated Motor Speed:

3000

Lead Of The Lead Screw:

5,10,20

Maximum Speed:

250,500,1250

High Light:

750W Linear Sliding Table Module

Dust Proof Linear Sliding Module

Product Description

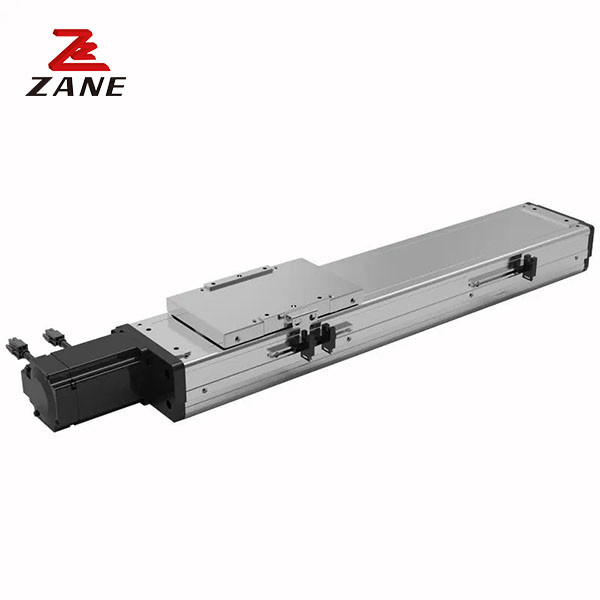

Semi-Enclosed Linear Sliding Table Module ZHH175 High Precision Ball Screw Dust Proof

1. Description

Linear motion guide actuator with dust cover, can reduce the machining rod to the ball screw pollution, improve the overall service life. Effective stroke 100mm-1500mm available stroke length can be freely selected, also linear motion guide can provide other sizes customized.

2. Specification

Motor power		750W
Repeated positioning accuracy		Class C ±0.02MM and Class P ±0.01MM
Outside diameter of lead screw(a)		20/25
Lead of the lead screw(MM)		5	10	25
Maximum speed(MM/SEC)		250	500	1250
Maximum load(KG)	level	156	132	66
	vertical	60	45	20
Rated thrust(N)		2710	1350	540
Stroke(MM)		100-1500(50interval)
Rated motor speed(RPM)		3000

Semi Enclosed Linear Sliding Table Module ZHH175 High Precision Ball Screw Dust Proof 0

Horizontal installation Unit:MM Wall mounting Unit:MM Vertical mounting Unit:MM

Lead	Load(kg)	A	B	C
5	60	3900	500	565
	100	2400	280	310
	120	2000	200	250
10	60	2730	480	520
	75	2160	360	420
	95	1730	260	325
25	30	2400	765	730
	50	1320	420	445
	80	780	240	240

Lead	Load(kg)	A	B	C
5	60	600	520	3240
	100	310	280	1980
	120	275	240	1620
10	60	500	445	2760
	75	400	360	2160
	95	290	265	1680
25	30	770	770	2000
	50	445	455	1200
	80	25	250	670

Lead	Load(kg)	A	C
5	20	1740	1740
	30	1200	1200
	50	700	700
10	15	1980	1980
	25	1200	1200
	40	720	720
25	5	2580	2580
	10	2280	2280
	25	880	880
