Linear Motion Guide
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE,ISO |
Linear bearings generally use a pad, bushing, or roller system to carry a load on a rail that need not be a straight line.Our slider model can directly replace HIWIN.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
The rail can be most any length, although that dimension is limited by the actuator.
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) |
Fixing bolts for slide rails size |
Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | ||||||||||||||||||||||
|
Mr kN^n |
MP kNf |
My kNF |
block kg |
slide kg/n |
||||||||||||||||||||||||||
| H | HI | N | W | B | BI | C | Li | L | KI | G | Mxl | T | h2 | h3 | WR | HR | D | h | d | P | E | (mm) | C(kN) | Co(kN) | ||||||
| GHH15CA | 28 | 4.3 | 9.5 | 34 | 26 | 4 | 26 | 39.4 | 61.4 | 10 | 5.3 | M4x5 | 6 | 7.95 | 7.7 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4xl6 | 11.38 | 25.31 | 0.17 | 0.15 | 0.15 | 0.18 | 1.45 |
| GHH20CA | 30 | 4.6 | 12 | 44 | 32 | 6 | 36 | 50.5 | 77.5 | 12.25 | 12 | M5x6 | 8 | 6 | 7 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 17.75 | 37.84 | 0.38 | 0.27 | 0.27 | 0.30 | 2.21 |
| GHH20HA | 50 | 65.2 | 92.2 | 12.6 | 21.18 | 48.84 | 0.48 | 0.47 | 0.47 | 0.39 | ||||||||||||||||||||

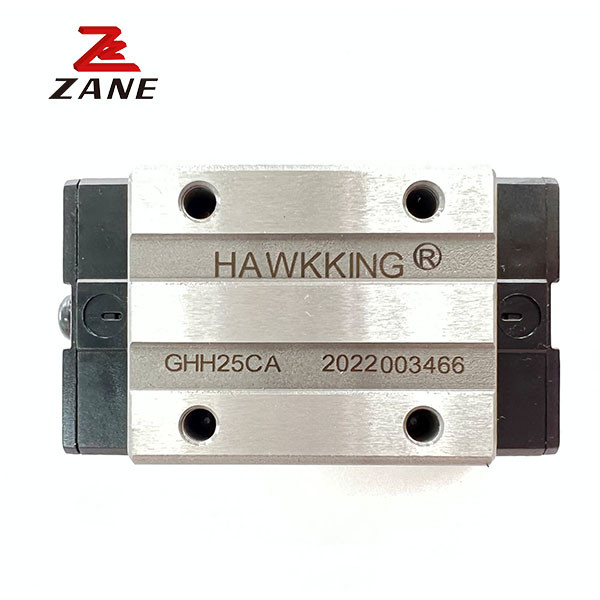

| GHH25CA | 40 | 5.5 | 48 | 35 | 6.5 | 35 | 58 | 84 | 16.8 | 12 | M6x8 | 8 | 10 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6x20 | 26.48 | 56.19 | 0.64 | 0.51 | 0.51 | 0. 51 | 3.21 | ||
| GHH25HA | 12.5 | 50 | 78.6 | 104.6 | 19.6 | 32. 75 | 76.00 | 0.87 | 0.88 | 0.88 | 0.69 | |||||||||||||||||||
| GHH30CA | 45 | 6 | 16 | 60 | 40 | 10 | 40 | 70 | 97.4 | 20.25 | 12 | M8xl0 | 8.5 | 9.5 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | 38.74 | 83.06 | 1.06 | 0.85 | 0.85 | 0.88 | 4. 47 | ||
| GHH30HA | 60 | 93 | 120.4 | 21.75 | 13.8 | M8x2ij | 47.27 | 110.13 | 1.40 | 1.47 | 1.47 | 1.16 | ||||||||||||||||||
| GHH35CA | 55 | 18 | 70 | 50 | 10 | 50 | 80 | 112.4 | 20.6 | 12 | 16 | 19.6 | 34 | 29 | 14 | 12 | 9 | 80 | 20 | 49.52 | 102.87 | 1.73 | 1.20 | 1. 20 | 1.45 | 6. 30 | ||||
| GHH35HA | 1.5 | 72 | 105.8 | 138.2 | 22.5 | M8xl2 | 60.21 | 136.31 | 2.29 | 2.08 | 2.08 | 1.92 | ||||||||||||||||||
| GHH45CA | 70 | 9.5 | 86 | 60 | 13 | 60 | 97 | 139.4 | 23 | M10xl7 | 16 | 45 | 38 | 20 | 17 | 14 | 105 | M12x35 | 77.57 | 155.93 | 3.01 | 2.35 | 2.35 | 2.73 | 10.41 | |||||
| GHH45HA | 20.5 | 80 | 128.8 | 171.2 | 28.9 | L8. | 30.5 | 22.5 | 94.54 | 207.12 | 4.00 | 4.07 | 4.07 | 3.61 | ||||||||||||||||
| GHH55CA | 80 | 100 | 75 | 75 | 117.7 | 166.7 | 27.35 | M12xl8 | 22 | 29 | 53 | 44 | 23 | 20 | 16 | 120 | 30 | M14x45 | 114.44 | 227. 81 | 5.66 | 4.06 | 4.06 | 4.17 | 15.08 | |||||
| GHH55HA | 13 | 23. 5 | 12. 5 | 95 | 155.8 | 204.8 | 36.4 | 12.9 | 139.35 | 301.26 | 7.49 | 7.01 | 7.01 | 5.49 | ||||||||||||||||
| GHH65CA | 90 | 15 | 126 | 76 | 25 | 70 | 144.2 | 200.2 | 43.1 | 25 | 15 | 15 | 63 | 53 | 26 | 22 | 18 | 150 | 35 | M16x50 | 163.63 | 324.71 | 10.02 | 6.44 | 6.44 | 7.00 | 21.18 | |||
| GHH65HA | 31.5 | 120 | 203.6 | 259.6 | 47.8 | 12.9 | M16x20 | 208.36 | 457.15 | 14.15 | 11.12 | 11.12 | 9.82 | |||||||||||||||||
1. Low price ,much cheaper than the wholesaler.
2. Good quality, our factory quality control is guaranteed, precision and load as good as the HIWIN , life is about 3/4 , very cost-effective.
3. Fast delivery, sent directly from the factory warehouse.
4. A full range of products, not only guide guide, but also can supply ball screw, Linear Guide Module,Rack and Pinion,Nidec Shimpo Gearbox.
